Original fuse box in the engine compartment (on the passenger side fender inner).
Some of the male pins seemed loose and the fuse holders have some corrosion. Also, there's oil/dirt all over...
The wire arrangement on one side..
The wire arrangement on the other side..
Just two screws to remove the fuse box from the fender inner.

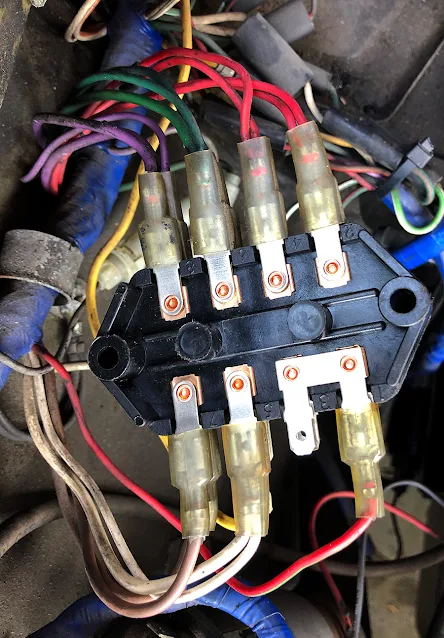

This is the "back" side of the fuse box.
It says "Lucas England" on it. Probable the original fuse box that the car was built with... Very dirty and some light corrosion...
Swapped all the wires onto the new fuse box.
Mounted back in place...
The new fuse box came with a cover over the fuses (the cover for the original fuse box was missing).
Done.
Some pictures of the original fuse box.
I'll clean it and save it as a spare...
